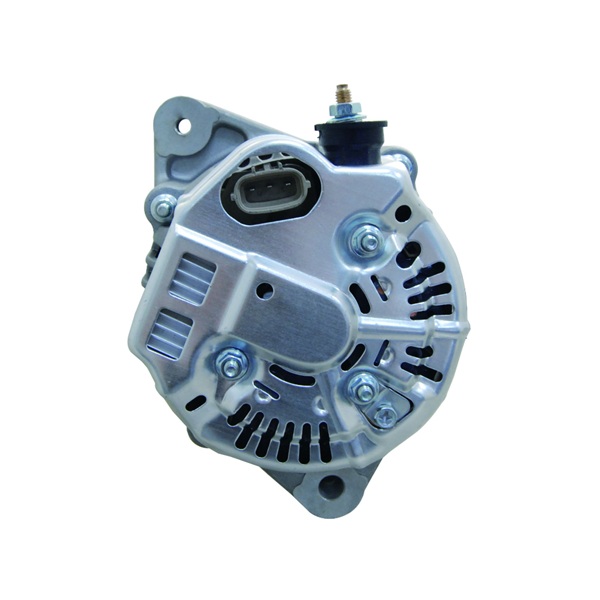

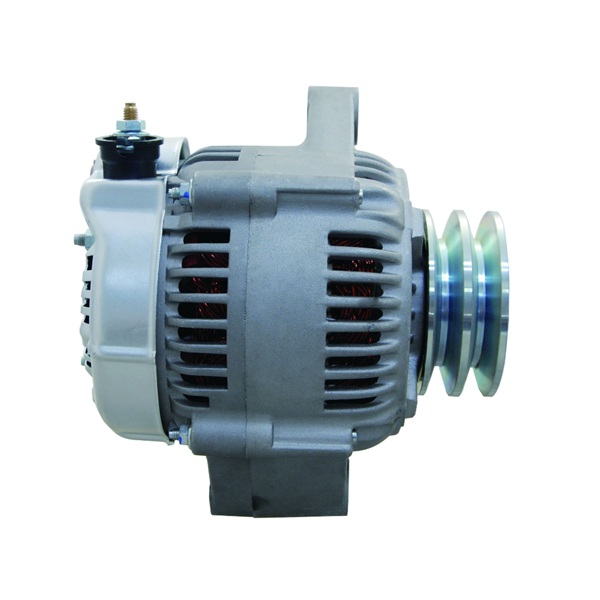

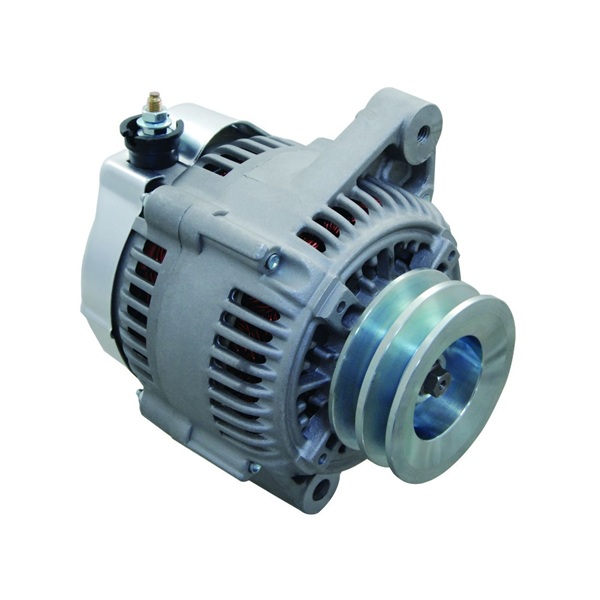

Yanmar 6LP, 6LPA, ALTERNATOR 80Amp, Replaces*: 119773-77200, 119773-77201

ALTERNATOR USED ON:

6LP-DT, 6LP-DTE, 6LP-DTZE1, 6LP-DTZY, 6LP-ST, 6LP-STE, 6LP-STZE, 6LP-STZE1, 6LP-STZE(P), 6LP-STZY, 6LP-STZYJ, 6LP-WDT, 6LP-WDTZY, 6LP-WST, 6LP-WSTZY
6LP(A)-DTE(P), 6LP(A)-DTZE(P), 6LP(A)-DTZEP1, 6LP(A)-STE(P), 6LP(A)-STZEP1
6LPA-STZP3, 6LPA-STP2

Replaces*:
Yanmar: 119773-77200, 119773-77201
Arrowhead: AND0192, ND101211-9940
Denso: 101211-994, 101211-9940
EMP4-6849
J&N Electrical Products: 400-52033
Lester: 12355
Lucas Electric: LRA02144
Mercury Marine: 8M6007520

SPECIFICATIONS:
Lester 12355
Volt 12
Amps 80
Condition New
Regulator Clock 12:00
Mount Hole ID 1 M8x1.25
Mount Hole 1 Type Threaded
Mount Hole 2 Type Unthreaded
Mounting Ear 2 Thickness 2.283″
Mounting Ear 2 Thickness 58mm
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M6x1.00
Polarity Negative

* AFTERMARKET PART
